For example, if there are 2 users. There are 3 rbd images (image1, image2, image3) created in pool1.
User1 is allowed to access only the rbd image1 in pool1. User2 is allowed to access rbd image 2 and image 3 in pool1.
First, get Object Prefix for the images using the below command. Record the block_name_prifix of each image. The
[root@node161-428ab ~]# rbd info pool1/image1
rbd image 'image1':
size 51200 MB in 12800 objects
order 22 (4096 kB objects)
block_name_prefix: rbd_data.344e06b8b4567
format: 2
features: layering
flags:
create_timestamp: Wed Jan 2 13:31:53 2019
[root@node161-428ab ~]# rbd info pool1/image2
rbd image 'image2':
size 51200 MB in 12800 objects
order 22 (4096 kB objects)
block_name_prefix: rbd_data.345026b8b4567
format: 2
features: layering
flags:
create_timestamp: Wed Jan 2 14:10:39 2019
[root@node161-428ab ~]# rbd info pool1/image3
rbd image 'image3':
size 102400 MB in 25600 objects
order 22 (4096 kB objects)
block_name_prefix: rbd_data.345db6b8b4567
format: 2
features: layering
flags:
create_timestamp: Wed Jan 2 16:27:17 2019
Then use edit to add capability in UVS manager CephX page as below

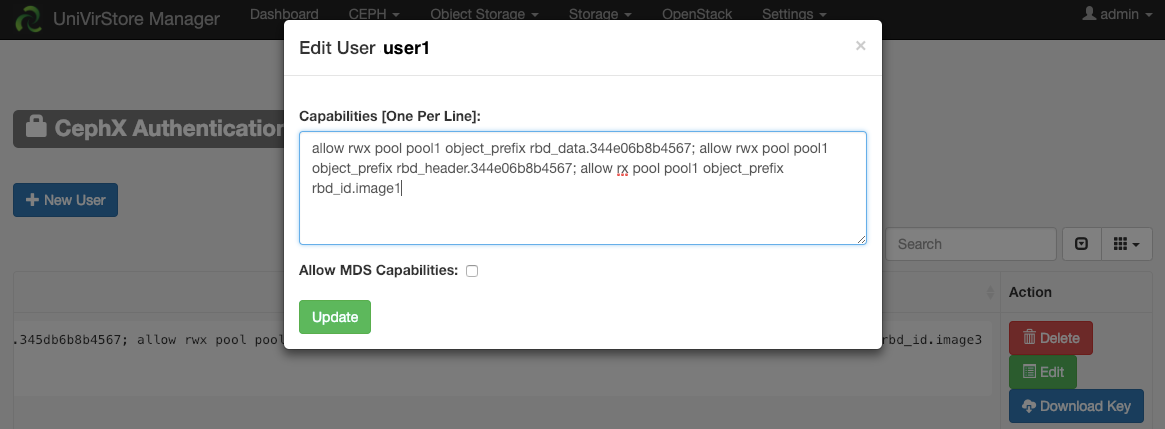

For user1: Replace the blue parts with the on in customer’s case.
allow rwx pool pool1 object_prefix rbd_data.344e06b8b4567; allow rwx pool pool1 object_prefix rbd_header.344e06b8b4567; allow rx pool pool1 object_prefix rbd_id.image1

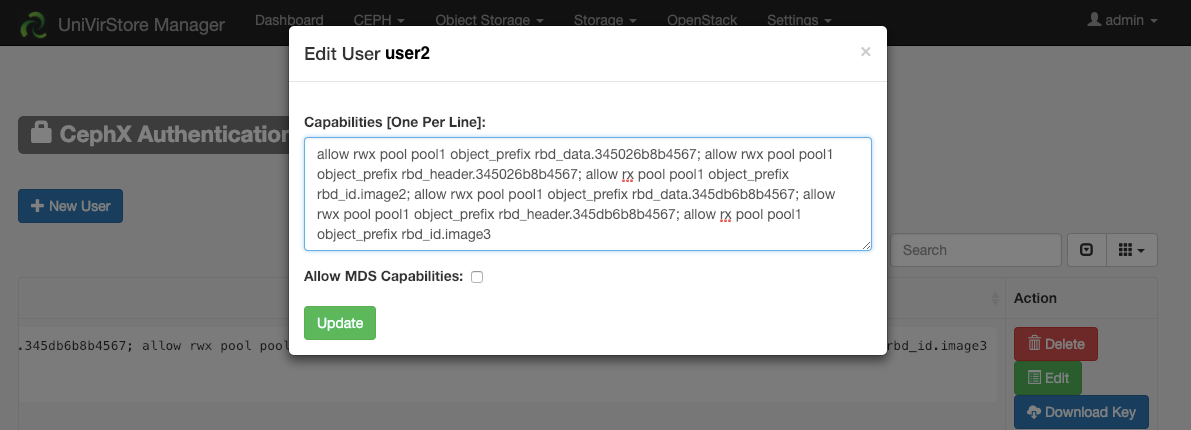

For user2: Replace the blue parts with the on in customer’s case.
allow rwx pool pool1 object_prefix rbd_data.345026b8b4567; allow rwx pool pool1 object_prefix rbd_header.345026b8b4567; allow rx pool pool1 object_prefix rbd_id.image2; allow rwx pool pool1 object_prefix rbd_data.345db6b8b4567; allow rwx pool pool1 object_prefix rbd_header.345db6b8b4567; allow rx pool pool1 object_prefix rbd_id.image3
Download the keyring file and ceph.conf files from UVS and copy them to /etc/ceph/ directory of the client server.
Then he can map and mount the rbd image.
The user name will be client.x.user1 and client.x.user2 in this example.
map example:
rbd map pool1/image1 -m 192.168.1.161:6789 --name client.x.user1 --keyring=/etc/ceph/ceph.client.x.user1.keyring
or
rbd map pool1/image1 -m 192.168.1.161:6789 --id x.user1 --keyring=/etc/ceph/ceph.client.x.user1.keyring
Please refer to the commands in the UVS manager user manual.
