Ceph version: Quincy 17.2.5 and later
Ceph NFS can use cephfs volumes or rgw buckets as it's back storage
Use Ceph FS as the NFS back storage
You must have a Ceph FS volume first.
You can create multiple NFS clusters to use any cephfs volume as the back storage. Every NFS cluster can create multiple exports for clients to mount as an folder.
Create Ceph Volume
Ceph FS volumes is an abstraction for CephFS file systems
$ # command : ceph fs volume create <name> [<placement>] $ # the placement include the number of Meta Data Servers (MDS) you want to create and the host's names these MDS will use. $ #Example $ ceph fs volume create ambedded --placement '2 ambedded-101 ambedded-102'
The placement is an option to let you assign explicit hosts for deploying the metadata servers.
The Ceph Orchestrator will automatically create and configure MDS for your file system. You can also create other CephFS volumes.
Every cephfs volume has its own MDS and pools.
An High Available cephfs need at least one active MDS and one standby MDS.
root@ambedded-102:~# ceph fs status
cephfs - 5 clients
======
RANK STATE MDS ACTIVITY DNS INOS DIRS CAPS
0 active cephfs.ambedded-101.hdeoyc Reqs: 0 /s 19 21 16 7
POOL TYPE USED AVAIL
cephfs_pool_66aaada7ab389.metadata metadata 375k 242G
cephfs_pool_66aaada7ab389.data data 36.0k 242G
ambedded - 3 clients
========
RANK STATE MDS ACTIVITY DNS INOS DIRS CAPS
0 active ambedded.ambedded-104.rcpuxy Reqs: 0 /s 10 13 12 3
POOL TYPE USED AVAIL
cephfs.ambedded.meta metadata 96.0k 242G
cephfs.ambedded.data data 0 242G
openstack-manila - 2 clients
================
RANK STATE MDS ACTIVITY DNS INOS DIRS CAPS
0 active openstack-manila.ambedded-102.yzmohc Reqs: 0 /s 10 13 12 2
POOL TYPE USED AVAIL
cephfs.openstack-manila.meta metadata 96.0k 242G
cephfs.openstack-manila.data data 0 242G
STANDBY MDS
cephfs.ambedded-104.etmjxw
MDS version: ceph version 17.2.6 (d7ff0d10654d2280e08f1ab989c7cdf3064446a5) quincy (stable)Create NFS cluster
You can create multiple ceph nfs cluster with or without HA by deploying haproxy and keepalived.
NFS cluster create command $ ceph nfs cluster create CLUSTER_ID [PLACEMENT] [--port PORT_NUMBER] [--ingress --virtual-ip IP_ADDRESS/CIDR_PREFIX]

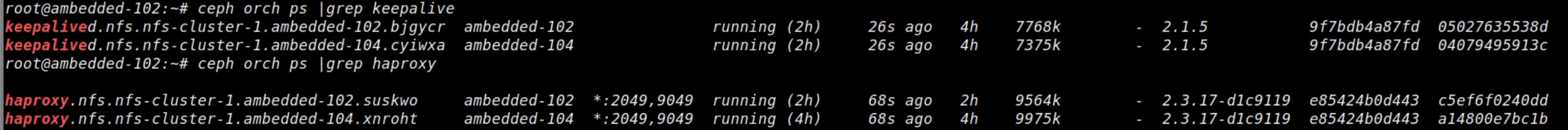

If you use ingress and virtual IP options, ceph nfs will deploy hapoxy and keepalived services for high available nfs cluster. Otherwise, only one nfs service will be deployed.
The placement is an option to let you assign explicit hosts for deploying the .
root@ambedded-101:~# ceph nfs cluster create nfs-cluster-1 'ambedded-102 ambedded-104' --ingress --virtual-ip 172.18.2.109/24
root@ambedded-101:~# ceph nfs cluster info nfs-cluster-1
{
"nfs-cluster-1": {
"virtual_ip": "172.18.2.109",
"backend": [
{
"hostname": "ambedded-102",
"ip": "172.18.2.102",
"port": 12049
}
],
"port": 2049,
"monitor_port": 9049
}
}
root@ambedded-101:~# ceph nfs cluster create nfs-cephfs
root@ambedded-101:~# ceph nfs cluster ls
nfs-cephfs
nfs-cluster-1
root@ambedded-101:~# ceph nfs cluster info nfs-cluster-1
{
"nfs-cluster-1": {
"virtual_ip": "172.18.2.109",
"backend": [
{
"hostname": "ambedded-102",
"ip": "172.18.2.102",
"port": 12049
}
],
"port": 2049,
"monitor_port": 9049
}
}
root@ambedded-101:~# ceph nfs cluster info nfs-cephfs
{
"nfs-cephfs": {
"virtual_ip": null,
"backend": [
{
"hostname": "ambedded-101",
"ip": "172.18.2.101",
"port": 2049
}
]
}
}
The next step is to cerate NFS exports
Each nfs cluster can create multiple exports and you can choose the cephfs volume for each export.
nfs cluster-1 export-1 on volume-a
nfs cluster-1 export-2 on volume-b
nfs cluster-2 export-a on volume-a
nfs cluster-2 export b on volume-c
$ # Command for creating nfs export on cephfs
$ ceph nfs export create cephfs <cluster_id> <pseudo_path> <fsname> [<path>] [--readonly] [--client_addr <value>...] [--squash <value>] [--sectype <value>...]
# example
root@ambedded-101:~#ceph nfs export create cephfs nfs-cluster-1 /user-a ambedded /
root@ambedded-101:~# ceph nfs export ls nfs-cluster-1 --detailed
[
{
"export_id": 2,
"path": "/",
"cluster_id": "nfs-cluster-1",
"pseudo": "/user-a",
"access_type": "RW",
"squash": "none",
"security_label": true,
"protocols": [
4
],
"transports": [
"TCP"
],
"fsal": {
"name": "CEPH",
"user_id": "nfs.nfs-cluster-1.2",
"fs_name": "ambedded"
},
"clients": []
}
]
root@ambedded-101:~# ceph nfs export create cephfs nfs-cluster-1 /user-b openstack-manila /
{
"bind": "/user-b",
"fs": "openstack-manila",
"path": "/",
"cluster": "nfs-cluster-1",
"mode": "RW"
}
Mount NFS on an client
apt-get update
apt-get install nfs-common
mkdir -p /mnt/nfs-cluster
#command
#mount a nfs export with ingress
mount -t nfs $virtual_ip:/user-a /mnt/nfs-cluster
mount -t nfs 172.18.2.109:/user-a /mnt/nfs-cluster
#mount a nfs export without ingress (stand alone nfs gateway)
mount -t nfs -o port=2049 172.18.2.101:/ambedded /mnt/nfs
Check NFS client mount
root@uvsvm-108:/mnt# df -h Filesystem Size Used Avail Use% Mounted on udev 3.9G 0 3.9G 0% /dev tmpfs 795M 1.4M 794M 1% /run /dev/md127 63G 11G 49G 18% / tmpfs 3.9G 39M 3.9G 1% /dev/shm tmpfs 5.0M 0 5.0M 0% /run/lock tmpfs 3.9G 0 3.9G 0% /sys/fs/cgroup tmpfs 795M 0 795M 0% /run/user/0 172.18.2.109:/user-a 243G 0 243G 0% /mnt/nfs-cluster 172.18.2.101:/ambedded 243G 0 243G 0% /mnt/nfs
Reference
https://www.ibm.com/docs/zh-tw/storage-ceph/7?topic=orchestrator-implementing-ha-cephfsnfs-service
